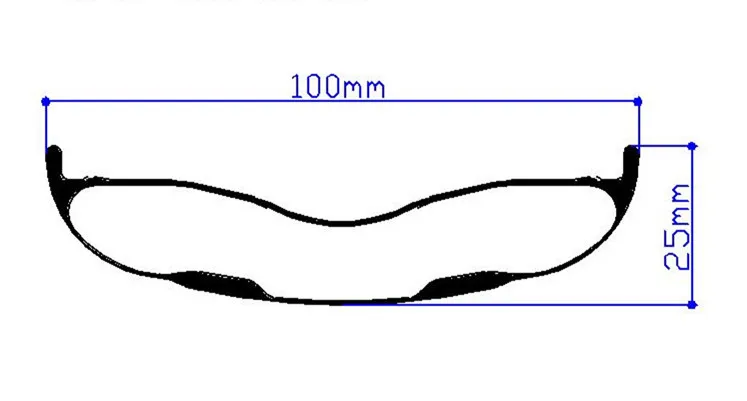

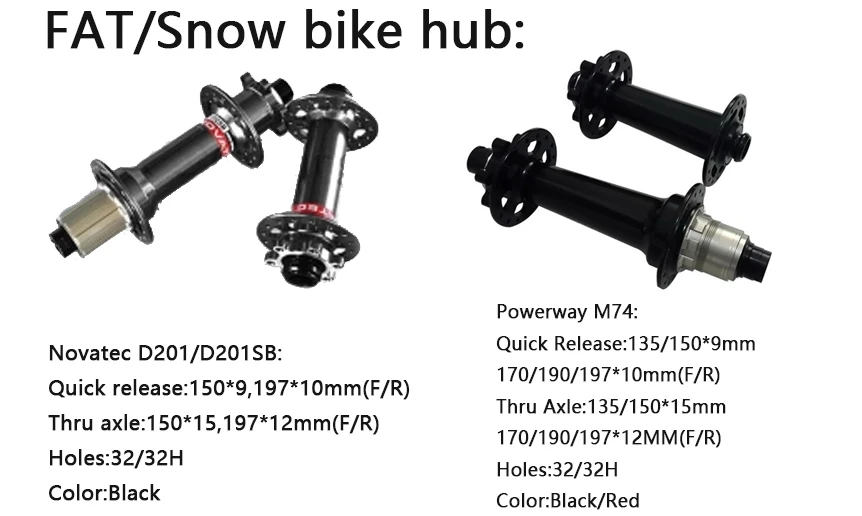

Hot selling: Please let us know whichweave(3K/UD),finish(matt/glossy),hub color(black/red),what front and rear space(135/150,170mm/190/197mm)do you need,What cassette body(Shima or S-RAM)will you need?when you place the order. Customized Decal is available. We accept OEM orders, please send us your logo/design in PDF, AI format, and all the details. Specifications 26inch 100mm width 25mm depth FAT bike wheels Rim Material Toray T700 Full Carbon Weave 3K/UD Finish Matt/Glossy Width 100mm Depth 25mm Type Clincher Weight 690±15g Hub Brand Novatec D101 202SB（quick release,Thru axle) Quick release:135*9,197*10mm or190*10mm(F/R) Thru axle:135*15,197*12mmor 190*12mm(F/R) Novatec D201 202SB（quick release,Thru axle) Quick release:150*9,197*10mm or190*10mm(F/R) Thru axle:150*15,197*12mmor 190*12mm(F/R) Powerway M74 Thru axlehubs（quick release,Thru axle) Quick release:135/150*9, 170/190/197*10mm(F/R) Thru axle:135/150*15, 170/190/197*12mm(F/R) Body:Shima 10、11S or S-RAM XX1 10 11S Spoke&Nipple Spoke Aero FJH or Pillar PSR1432/1432 Spoke holes Front 32, Rear 32 Nipple Alloy Others Wheelset Weight 2500±30g Standard En Standard Design characters * 100mm width profile makes the rim more stable and safe, full of strong grip. Layers covered in different angles, and adhere with the opposite side, so the strength of the rim is higher. * Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats. *High TG and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power. *Filled with 3D weave, that will make the rim stable, safe and durable. *Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has theinner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer. *250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes. Notes for use Max weight limit: 150kg Max spoke tension:front:100kgfrear:140kgf Max tire pressure: 25psi Photo Hub details: Package The box we use for package is specially designed with strong inside structure. It could protect the goods from violentlythrowing and pressure during the shipping. It may have some damage to the box during the shipping, but you will getcomplete and brand new wheels finally. About us: Xiamen Boostbicyclecomposite materialCo.,Ltdis a high-tech enterprise specialized in researching and developing carbon bike parts. What we have: Experienced team:our R&D staffs and managers had worked in international brand Oem factory for more than 10 years. Sophisticated equipments:carbon fiber fabric cutting machine, high temperature molding machine, testing machine and other precise machines imported from Japan. Exquesite craftsmanship:all the products are hand-made by our experienced workers. Main products: Carbon fiber wheels, carbon fiber bike frames, carbon bike forks, carbon bike rims, carbon bike seat posts and othercarbon fiber bike parts. Products’ features: Rims/wheels: 1.High TG and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power. 2.Filled with 3D weave, that will make the rim stable, safe and durable. 3.Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has theinner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer. 4.250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes. Frames: 1.Using Toray T700 carbon fiber, it's high tensile strength and modulus, good corrosion resistance, it makes the frame more durable and comfortable. 2.Internal cable routing: full internal cable routing for brakes and shifter cables maintains the cleanest line for optimal aerodynamics. 3. Tapered headtube improves the frame's performance, reduces wind resistance, and enhances aerodynamic effect. 4.The seat stay improves the frame’s strength, the symmetrical design shares the function of buffer, allowing you to ride more comfortable. 5.The frame has many different sizes and larger adjustment space, so there must be one that fits you. Testing the carbon bike rims/frames: Sophisticated testing equipments: We use EN and UCI standard to test the carbon bike wheels and frames, we have an equipment to simulate cycling to test its performance. Testing the carbon bike rims/frames: Sophisticated testing equipments: We use the En and UCI standard to testing the carbon bike wheels and frames,, brake suface temperature machine, Simulation of cycling test equipment,and other precise machines imported from Japan and Germany. Cooperation case show: 1.88mm road bike wheels (from Silva bicycle Co.,Ltd ) 2.Velo bike parts (UK company) 3.Painted frames (Colossi mche company from USA bike shop) 4.60mm road bike wheels (from Cipressa bike club Co.,Ltd ) 5.Road bike handbars decal(from Velo bike Co.,Ltd ) F.A.Q(Frequently answer and question) Why use basalt braking surface? The basalt braking surface has higher TG than Toray T700 carbon fiber fabric, it can dissipate heat build-up and provides consistently solid braking.The rough surface can increase the friction to improve the stopping performance of the carbon wheel. Besides, it won’t squeal when braking thanks to the rough surface. What’s the minimum order quantity? If there is a discount in bulk? The MOQ of rims and frames is 1/piece, the MOQ of wheelset is 1/pair. You can get 3%off when you order more than 10 pieces/pairs, 5% off if you order more than 20 pieces/pairs. More favorable price welcome to contact us. How about the productions guarantee? We offer 1 year quality warranty for wheels/rims, 3 years for frames and 1 year for other carbon bicycle components . After I place an order, when will it become valid and what's the delivery time? When you place and pay the order successfully, it will become valid immediately. Generally, the delivery time is 5-15 days, it will be slightly different according to the order quantity. Payment WeacceptAli escrow, if you want to pay in other ways please contact us forinstructions.Fullpaymentmustbemadewithin15daysofplacingyourorder.Thebuyerisresponsibleforanytaxand/ordutychargedbytheircountry. Feedback Your feedback is very important to us. If you are satisfied with our products and service, please leave five stars and posticvefeedback to us, that's a big encouragement to us. If there is any problem, please feel free to contact us before you leavenegativefeedback, we will do our best to solve it. < Green cycling,Health with you for ever,Thank you!>
